Description
Product Description

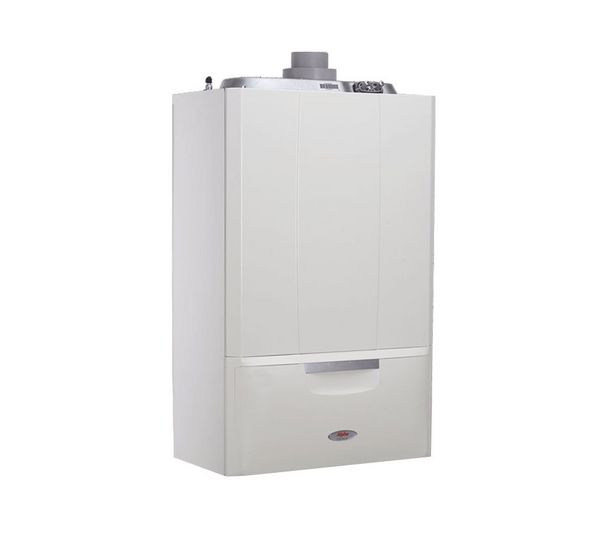

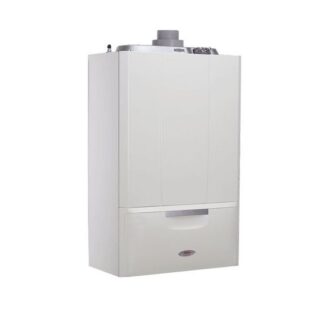

The Alpha E-Tec 38 combi boiler is easy and quick to fit, thanks to the included Alpha 500mm Easiflue ceramic disc plume and mounting jig. Saving up to an hour in installation time, the Easiflue is made up of inner and outer ducts that slide to expand and reduce in length, so you don’t need to measure and cut to fit. Maintenance and service is straightforward too, with dry-change NTCs located in an easy to reach spot, a corrosion-resistant zinc plated expansion vessel and robust Grundfos pump and hydroblock assembly minimising the need for repair and reducing time spent inside the unit. An ErP A rating helps the owner of this 38kW output combi boiler save on fuel bills.
Product Features
- Sales pack includes Alpha E-Tec Plus 38kW combi boiler and 500mm Alpha Easiflue ceramic disc plume
- Stainless steel heat exchanger
- High efficiency Grundfos pump and hydroblock assembly
- Single electrode
- Easy-access dry-change NTCs located on the front of pipes
- Combined condensate and pressure relief valve connection
- Zinc plated expansion vessel prevents corrosion
- Copper pipe tails with isolation valves
- Integrated filling loop for easy top-up
- Control panel and bottom cover
- 10 year warranty
Web Pack Includes
196897 Alpha E-Tec Plus combi boiler 38kW
196068 Alpha Easiflue ceramic disc plume 500mm
Specification:
| Brand: | Alpha |
|---|---|
| Flow Rate: | 15.9 L/min @ 35�C |
| Fuel Type: | Natural Gas |
| KW: | 3.8 |
| Model Number: | 38 |
| Range: | E-Tec Plus |
| Range Type: | Boiler Packs |
| Warranty: | 10 Years |
| Weight: | 367 kg |
| Energy Rating: | A |
| Water Heating Energy Efficiency Class: | A |
| Depth (mm): | 268 |
| Dry Weight (kg): | 36.7 |
| Efficiency (SAP 2009): | 93 |
| Mounting Type: | Wall Hung |
| Height (mm): | 712 |
| Supplier Product Code: | 333126 PK |
| Type: | Combi Boiler Pack |
| WEEE Compliant: | N |
| Width (mm): | 440 |
Part Number: 333126 PK
Brand: Alpha
