Description
Product Description

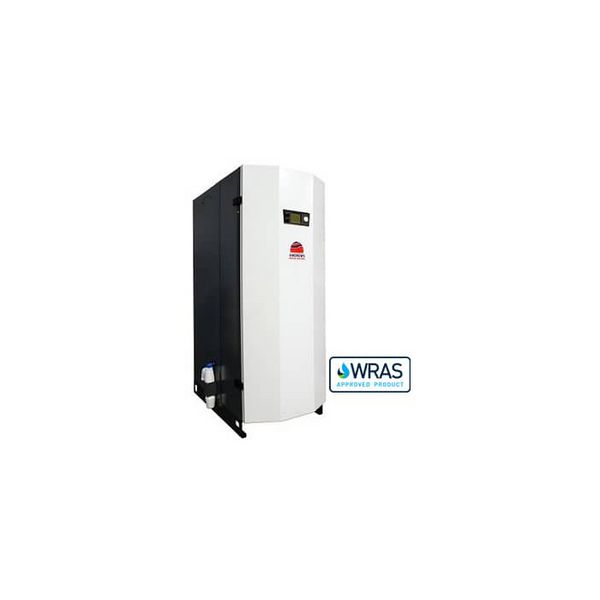

Incorporating multiple stainless steel heat exchanger modules, the highly efficient 300L Andrews MAXXflo EVO CWH 120/302 twin burner fully condensing floor-standing storage water heater provides fast, powerful hot water. Constructed from tough, high grade stainless steel, the 120kW MAXXflo EVO is built to last, minimising the need for ongoing maintenance and repair while keeping running costs and waste to a minimum with an eco-friendly ErP A rating.
Product Features
- Grade 316L stainless steel heat exchangers
- Heat exchangers located on side of storage vessel
- Integral grade 316L stainless steel storage tank
- Burners and heat exchangers can be isolated for built-in redundancy and service flexibility
- Independent service valves and pressure sensors on each heat exchanger
- Low NOx burners
- High efficiency modulating pumps
- Multi-line graphical display
- Ready to connect into BMS via ModBUS protocol
- Water reheat 8 min at 45°C, 9 min at 50 °C
- 22mm and 28mm copper pipework connections
- Full anti-legionella functions with strap-on sensor
- IP20 rated
- 2 year warranty
Specification:
| Brand: | Andrews Water Heaters |
|---|---|
| Colour: | White |
| Connection: | Threaded |
| Connection Type: | Threaded |
| KW: | 12.2 |
| Length (mm): | 602 |
| Material Type: | Stainless steel |
| Model Number: | CWH 120/302 |
| Operating Temperature: | 65 |
| Range: | MAXXflo EVO |
| Range Type: | Water Heaters |
| Warranty: | 2 Year |
| Weight: | 205kg |
| Phase: | single |
| Water Heating Declared Load Profile: | XXL |
| Sound Power Level (Indoors): | 65 dBA |
| Depth (mm): | 1046 |
| Re-heat times: | 8 min @ 45 �C, 9 min @ 50 �C |
| Anti Legionella Function: | Yes |
| Water Pressure: | 9 |
| Thermostat Temperature: | 60 |
| Useage Single / Multi Point: | Multi Point |
| Max Pressure: | 7.5 |
| Body Material: | Stainless steel |
| Capacity (l): | 300 l |
| Controls: | Electronic |
| Eco Setting: | No |
| ErP Rating: | A |
| IP Rating: | IP 20 |
| Material: | Stainless Steel |
| Max Pressure (Psi): | 108 |
| Min Pressure (Psi): | 11.6 |
| Mounting Type: | Floor Mount |
| Output Power: | 120 |
| Size: | 1049 x 602 x 1980mm |
| Storage Capacity: | 300 |
| Water Connection: | 1-1/2 BSP |
| Capacity: | 300 l |
| Capacity (Litres): | 300 |
| Height (mm): | 1980 |
| Supplier Product Code: | 7726953 |
| Type: | Water Heater |
| WEEE Compliant: | N |
| Width (mm): | 602 |
Part Number: 7726953
Brand: Andrews Water Heaters
