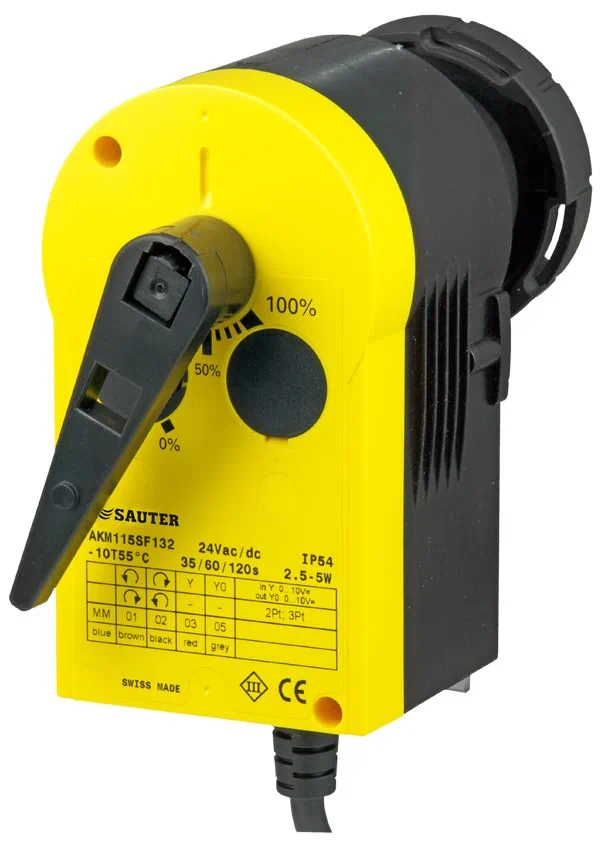

AKM115SF152 | Sauter

Description

AKM115SF152 | Sauter

Features

• For operating 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI, BKTA, (AKM115S) and 6-way ball valve B2KL

• For controllers with constant output (0…10 V) or switching output (2-/3-point control)

• Assembly with ball valve without the use of tools

• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit

• Electronic force-dependent motor cut-off

• Automatic recognition of applied control signal (continuous or switched)

• Coding switch for selection of characteristic and running time (35 s, 60 s, 120 s)

• Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator

• Direction of operation can be selected directly on the cable

• Maintenance-free gear unit

• Gear unit can be disengaged in order to position the ball valve manually (using the lever)

• Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve

Part Number: AKM115SF152

Manufacturer: Sauter

Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
