Description
Product Description

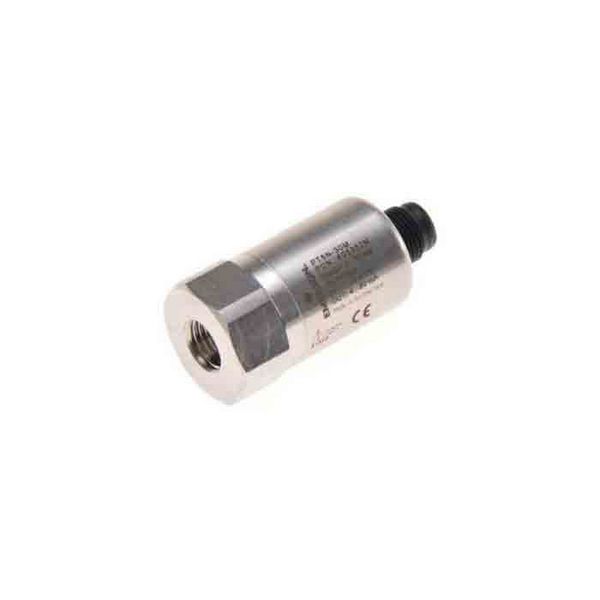

The Alco PT5N-30M 0 to 30 bar pressure transmitter is built to convert pressure into a linear electrical 4 to 20 mA output signal. This signal can control simple compressor and fan switching, converting it to superheat modulation of an electronic control valve. Featuring an easy installation pre-fabricated M12 cable assembly and 7/16″ UNF connection, the PT5N transmitter is an affordable and high performing choice for heat pump, refrigeration and air conditioning use.
Product Features
- Pressure sensitive piezo-based cell with strong primary output signal for precise operation
- Compact dimensions
- Vibration, shock and pulsation resistant
- Reduced full scale error over complete temperature range
- Sealed gauge absolute pressure reference for increased accuracy independent of atmospheric pressure variation
- Output signal is 4 to 20 mA
- Calibrated for specific temperature and pressure ranges to fulfill application demands in air conditioning and refrigeration systems.
- Easy-to-install M12 electrical connection with pre-assembled cable assembly
- Pressure connector 7/16-20 UNF with Schrader valve
Specification:
| Brand: | Alco |
|---|---|
| Connection: | 1/4 Flare |
| Connection Type: | 1/4 Flare |
| Model Number: | PT5N-30M |
| Range: | PT5N |
| Range Type: | Electronic Controls |
| Weight: | 0.10300 |
| IP Rating: | IP67 |
| Pressure Rating: | 0 to 30 bar |
| Supplier Product Code: | 805352 |
| Type: | Pressure Transmitter |
| WEEE Compliant: | N |
Part Number: 805352
Brand: Alco
