Description

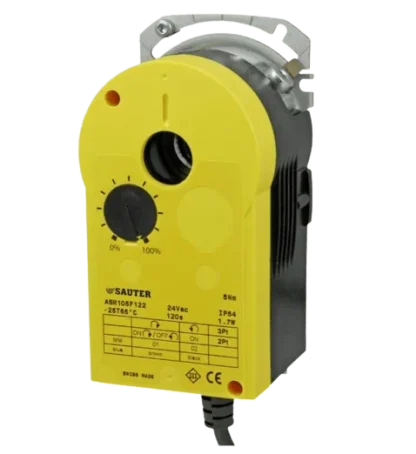

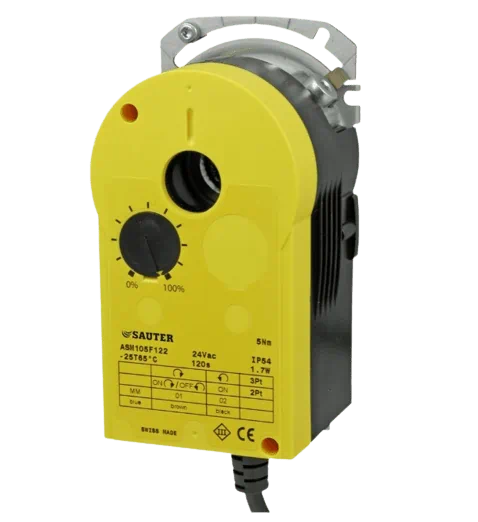

ASM115F120 | Sauter
General
Time-dependent cut-off facility for efficient usage of energy.
Features
- For controllers with switching output (2- and 3-point)
- Self-centring spindle adapter
- Gear unit can be disengaged to position the damper and for manual adjustment
- Synchronous motor with electronic activation and cut-out
- Maintenance-free
- Suitable for all fitting positions
Specifications
- Make: Sauter
- Model: ASM115F120
- Torque: 10 Nm
- Control function: 2-/3-point
- Running time: 120s
- Power supply: 230 V~
- Angle of rotation: Max. 95°
- Admissible damper shaft: Ø 8…16 mm, □ 6,5…12.5 mm
- Admissible damper shaft (hardness): Max. 300 HV
- Operating noise: < 30 dB (A) Response time 200 ms
- Type of protection: IP54 (EN 60529)
Part Number: ASM115F120
Manufacturer: Sauter
Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
Is this the right product for you?
email: sales@hvac‑sanitary.co.uk and we will make sure.
