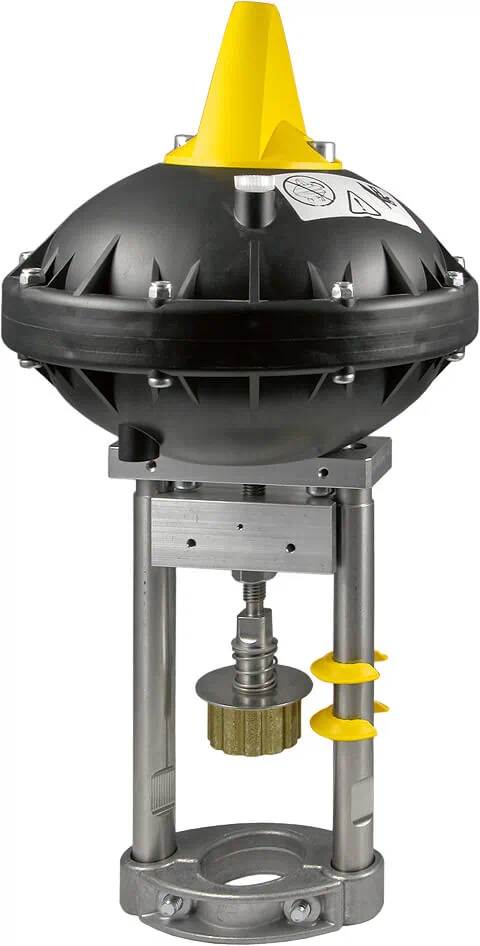

AVP242F021 | Sauter

Description

AVP242F021 | Sauter

Part Number: AVP242F021

Manufacturer: Sauter

Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.

AVP 242…244: Pneumatic valve actuators
How energy efficiency is improved
Precise valve activation with only the slightest air requirement
Features
• Activation of 2-way and 3-way valves of the VUD/BUD, VQD/BQD, VUE/BUE, VQE/BQE,
VUG/BUG, VUS/BUS and VUP series for continuous control facilities or for open/close control
• Silicone-free, therefore usable in many applications
• Long-term stable NBR diaphragm
• The direction of operation can be reversed by fitting the unit to the bracket the opposite way round
• Stroke indicator enables the position of the actuator to be determined quickly
• Compressed-air connection with Rp ⅛” female thread
• Patented actuator–valve coupling enables the two units to be connected quickly and easily
Technical data
Parameters
Control pressure 0…1.2 bar
Maximum pressure 1.5 bar
Control span 0.6 bar
Ambient temperature
Admissible ambient temperature -15…50 °C
Temperature at the diaphragm Max. 70 °C
Overview of types
Type For valve with stroke Air consumption for
100% stroke
Effective area Weight
AVP242F001 8 mm 0.30 ln 180 cm² 3 kg
AVP242F021 14/20/25 mm 0.65 ln 180 cm² 3 kg
AVP243F021 20 mm 1.10 ln 250 cm² 6 kg
AVP243F031 30/40 mm 2.00 ln 250 cm² 6 kg
AVP244F021 20 mm 1.90 ln 500 cm² 12 kg
AVP244F031 30/40 mm 3.30 ln 500 cm² 12 kg
