Description
How energy efficiency is improved
Efficient use in continuous control systems
Features
- Continuous control of cold and hot water in closed circuits
- Water quality as per VDI 2035
- In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit
- Not suitable for drinking water or potentially explosive atmospheres
- Valve with flange connection as per EN 1092-2, seal form B
- Regulating valve, free of silicone grease, painted black
- Equal-percentage control passage characteristic, can be set with SUT (SAUTER Universal Technology)
valve actuators to linear or quadratic - Mixing passage, linear characteristic
- The control passage is closed when the spindle is moved out
- Used as control valve or as distribution valve
- Valve body with seat made of grey cast iron
- Stainless-steel spindle
- Plugs made of stainless steel with metal-to-metal seal
- Stuffing box made of stainless steel with wiper ring and double O-ring seal made of EPDM

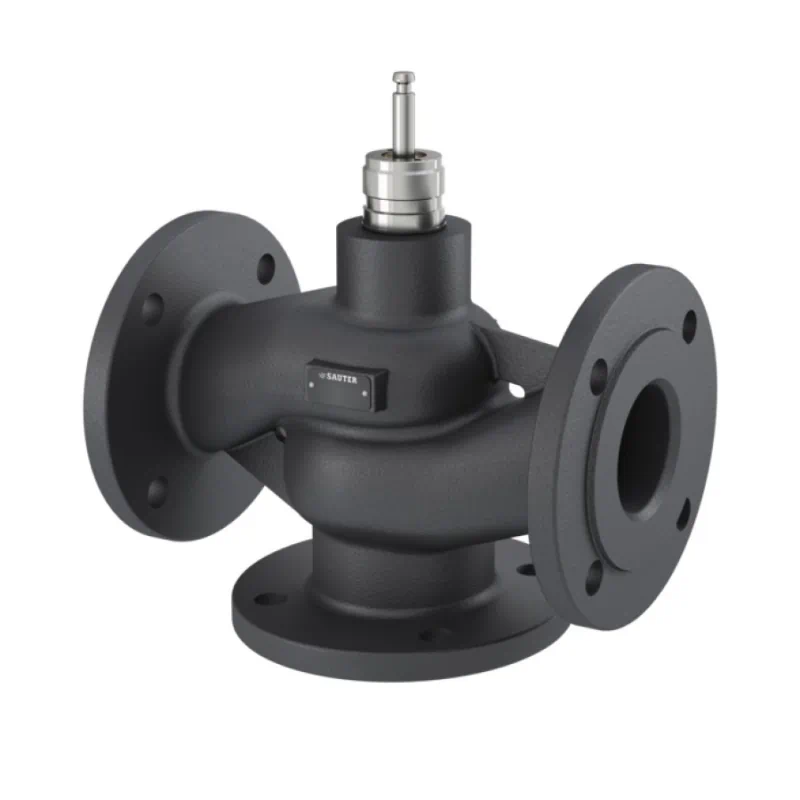

BQD065F300 | Sauter
Part Number: BQD065F300
Manufacturer: Sauter
Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
