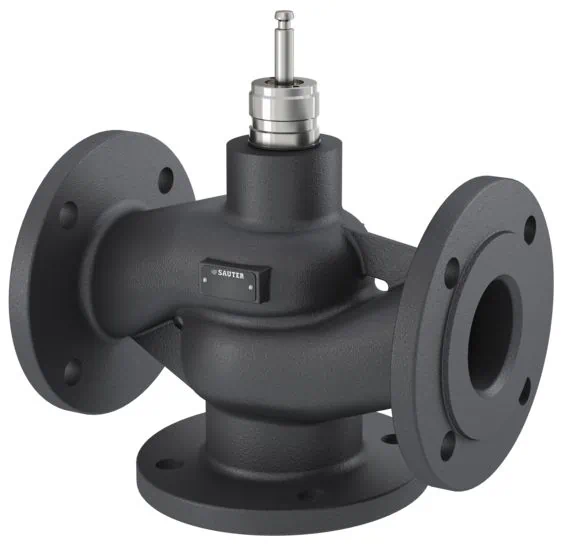

BQE080F300 | Sauter

Description

BQE080F300 | Sauter

Features

• Continuous control of cold and hot water in closed circuits

• Water quality as per VDI 2035

• In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit

• Not suitable for drinking water

• Valve with flange connection as per EN 1092-2, seal form B

• Regulating valve, free of silicone grease, painted black

• Equal-percentage control passage characteristic, can be set with SUT (SAUTER Universal Technology) valve actuators to linear or quadratic

• Mixing passage, linear characteristic

• The control passage is closed when the spindle is moved out

• Used as control valve or as distribution valve

• Valve body with seat made of grey cast iron

• Spindle and plug made of stainless steel; plug with metal-to-metal seal

• Stuffing box made of stainless steel with wiper ring and double O-ring seal made of EPDM

Part Number: BQE080F300

Manufacturer: Sauter

Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
