Description
Product Description

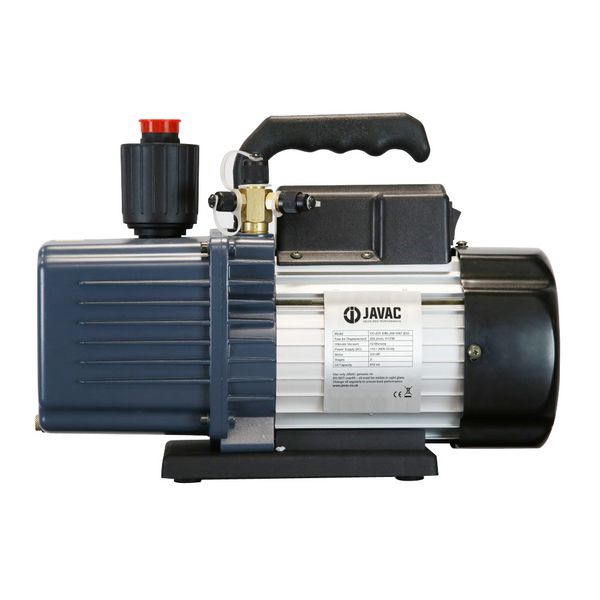

Ideal for industrial ACR installations of any size, this Javac CC 2/3 HP ammonia dual voltage vacuum pump offers high performance in a lightweight, robust package. At 9CFM and 225LPM, the CC-231 significantly reduces the time spent evacuating systems and pipework.
Product Features
- Double stage oil sealed
- Anti-oil de-mister prevents spillage
- 1 year warranty
Specification:
| Brand: | Javac |
|---|---|
| Colour: | BlackBlue |
| Connection: | 1/4 SAE3/8 SAE1/2 ACME |
| Connection Type: | 1/4 SAE3/8 SAE1/2 ACME |
| Flow Rate: | 230 L/min |
| Range: | CC |
| Range Type: | Vacuum Pumps |
| Voltage (V): | 110240 |
| Warranty: | 1 Year |
| Motor Speed: | 2880 |
| Horse Power: | 2,3 |
| Depth (mm): | 160 |
| Absolute Vacuum: | 12 |
| Stages: | 2 |
| Oil Capacity: | 610 |
| Height (mm): | 285 |
| Supplier Product Code: | CC-231-AMM |
| Type: | Vacuum Pump |
| WEEE Compliant: | N |
| Width (mm): | 380 |
Part Number: CC-231-AMM
Brand: Javac
