Description

Wade/gv5103 Gully+nb Grating Sl

Dimensions:
Quality Drainage Products
160 dia. at finish level
220 dia. body
6 – grating aperture width
105 – Height below Body Flange
105 – depth body flange to outlet invert
Connection – 50mm solvent weld plastic socket (2″)
Free Area – 14cm²
Materials – Grating, clamping collar – nickel bronze; Body,
dip tube, bucket – plastic (ABS)
Load Rating Class – L15
Weight – 1.5 k

General Description:

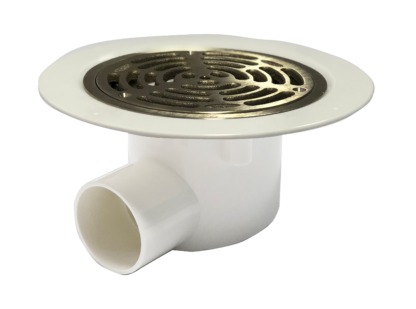

160 Dia. Nickel Bronze ‘P’ Trapped Shower Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2″
socket outlet.), with 2″ Socket BS 5255 dia. horizontal outlet with 6mm grating aperture width . GV5103 is a compact,
lightweight, ‘’trapped gully with peripheral slot drainage for use in shower areas decked with flexible sheet floor covering
such as vinyl, up to 3.5mm thickness.
Options:
To specify an option, add option letter(s) as a suffix to the Spec. Code
H – fitted with Pin Torx screws for security applications
Materials:
ABS: Used for bodies, dip tubes, extensions and spigot adaptors. A cost effective, fire resistant material.
Nickel Bronze – BS EN 1982: Used with satin finish for gratings, funnels and access covers. A cast alloy with a fine
grain effect which blends well with most floor finishes. The satin finish is generally maintained by the slight abrasive
action of passing traffic. In unused areas the material will gradually tarnish. To restore lustre, apply a plain nylon
scouring pad (not soap-filled) in the direction of grain.Note: Avoid covering nickel bronze items with plastic sheeting
after installation, otherwise blackening may occur

Part Number: GV5103

Manufacturer: Wade Drainage
