NSA-FTD7003-0 | Johnson Controls

Description

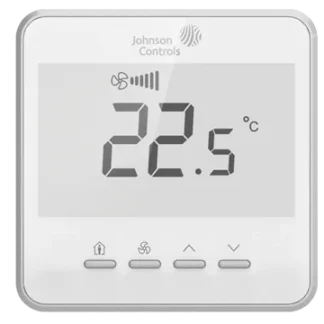

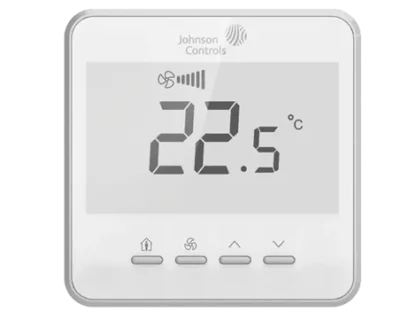

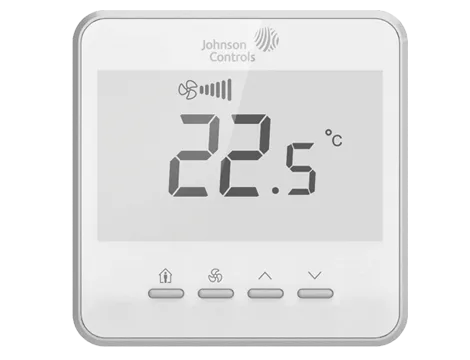

The flush-mounted NSA7000 series network sensor with LCD is an electronic room sensor designed to function directly with Johnson Controls® BACnet® MS/TP digital controllers in heating, ventilating and air conditioning (HVAC) systems. Models in this series monitor the zone temperature and humidity, and transmit this data to a field controller on the Sensor Actuator (SA) bus. Display can toogle between Temperature and Humidity or show only the Setpoint value in °C or °F. Setpoint functionality W/C (+ 3°C) or Adjust (12 to 28 °C) can be selected locally. All models have occupancy button, which allows user to signal when the zone is occupied, to set the comfort mode only when is necessary. Installation is quite easy, given the possibility to configure the functionality from the display itself and through the METASYS controllers configuration tool. Connection to the controller is flexible, each model supports screw terminal and modular jack connections also. The NSA-7000 standard color is white but they may be customized in black or other colors, customization requires a minimum order quantity.

Part Number: NSA-FTD7003-0

Manufacturer: Johnson Controls
