Description

RCP11F001 | Sauter

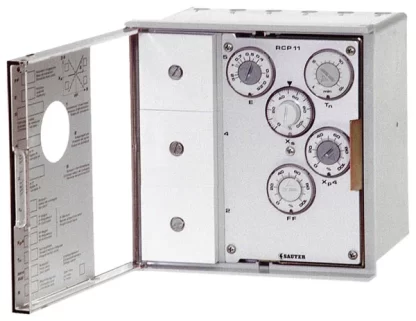

RCP 10, 11: PI-controller

How energy efficiency is improved

Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.

Areas of application

Pneumatic control in ventilation and air-conditioning equipment of temperature, pressure, pressure differential, humidity and flow rate in combination with appropriate transducers.

Features

• PI fixed-value controller
• PI fixed-value/schedule controller
• Controllers can be used universally for the most varied of applications
• Housing, rack and front doors made of thermoplastic
• Suitable for wall or panel mounting
• Functional description and commissioning help inserted in front door
• Front panel with adjusters and 3 covered recesses for plug-in pressure gauge (XMP) making commissioning easier
• Setpoint adjuster XS adjustable manually with scales for all Centair ranges
• All settings very easy to make with coin and % scale
• M4 measuring connections, control action adjustable (delivered with control action B)
• Rp 1/8″ female thread
• Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description

Supply pressure 1.3 bar ± 0.1

• Easily accessible adjusters for XS (setpoint), XP4 (P range), Tn (reset time), E (influence) and FF (schedule start point)

Inputs for:

• remote setpoint adjustment
• controlled variable
• command variable

Outputs for:

output pressure for dampers or valve actuator

RCP 10 F001 fixed-value PI-controller 400 30 0,7
RCP 11 F001 fixed-value/schedule PI controller 400 30 0,7

RCP 10: RCP 11:

• Setpoint XS 0…100% Setpoint XS 0…100%
• Remote adjust. of setpoint 0…100% Remote adjustment of setpoint 0…100%
• P-band XP4 0…100% P-band XP4 0…100%
• Reset time Tn 1…15 min Reset time Tn 1…15 min
• Shift starting point FF 0…100%
• Influence E 0,25…3
• Supply pressure 2) 1,3 bar ± 0,1 Connection diagram, RCP 10 A02690
• Input pressures 0,2…1,0 bar Connection diagram, RCP 11 A02691
• Output pressures 0,2…1,0 bar Dimension drawing M297100
• Permissible amb. temp. 0…55 °C Fitting instructions MV 3246

Accessories

0297103 000 Additional bag of scales with 8 different scales according to the transducer used.
0297133 000 Universal scales for setpoint adjuster XS; gradation 120, 80/160, 50/100, 30/60
1) Without transducer; air consumption for transducer connection 4 is 33 ln/h more.
2) See Section 60 on regulations concerning the quality of supply air, especially at low ambient temperatures

Operation

RCP 10 and RCP 11

The transducer at connection 4 converts the control variable into the pneumatic standard signal 0,2…1,0 bar (equivalent to 0…100%) within its measuring range. This actual-value signal xi4 is compared with the fixed setpoint Xs. If there is control deviation, the output pressure y is adjusted until the actual value is equal to the setpoint (PI-control). With a pressure of 0,2…1,0 bar at input 6, the setpoint can be set remotely from 0…100%. The internal setpoint setting then functions as a minimum limitation.
A restrictor (Ø 0,2 mm) for supplying the transducer is fitted at connection 4. The signals from the transducer and the output pressure can be checked via the M4 measuring connection or shown via the manometer.

RCP 11: additional functions

The transducer at connection 5 converts the command variable (e.g. outside temperature) into the pneumatic standard signal 0,2…1,0 bar (equivalent to 0…100%). This signal (xi5) is fed to the command circuit which, together with the setting parameters FF and E, creates a program for the setpoint shift of the following PI-controller. The characteristic for the influence E can be placed in any of the four quadrants.
Because the outside temperature is often fed to more than one controller, the transducer at connection 5 must be supplied by a separate (Ø 0,2 mm) restrictor.

Additional details

RCP 10: Front plate with adjusters for setpoint, P-band and reset time.
RCP 11: Front plate with adjusters for setpoint, P-band, reset time, influence and shift starting point.

Additional information on accessories
0297103 000 Additional bag of eight alternative scales
5…35 °C 20…90 %rh
–20…40 °C 0…5 mbar
0…120 °C 5…10 mbar
80…200 °C 10…15 mbar

Technical information

Technical manual: centair system 304991 003
