Description

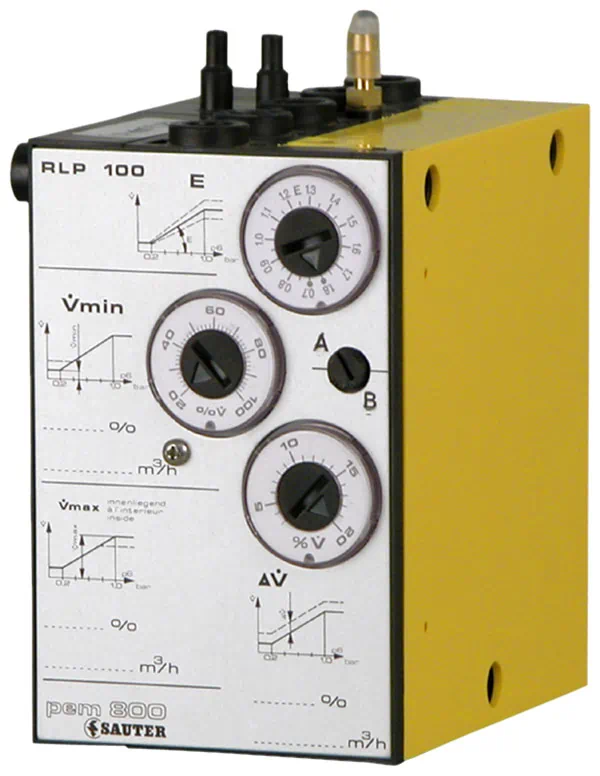

RLP100F924 | Sauter | Pneumatic volume-flow controller
How energy efficiency is improved
Allows demand-based volume flow control for fume cupboards, laboratories and clean rooms
Features
- Suitable for use in potentially explosive atmospheres in zone 1 II 2 G T6
- Conformity tested as per EN 13463-1 and EN 1127-1 (potentially explosive atmosphere 1 II 2 G T6)
- Controls constant, switchable or variable air volumes
- High-precision, static differential pressure sensor with large measuring range (1…160 Pa)
- Front plate printed with circuit diagrams for easy identification of the controller functions
- Compressed-air connections with Rp⅛” female thread
- Special measuring connection for detecting the volume flow
- Low-pressure connections with dual-diameter connector for soft plastic tubing (internal 4mm and 6mm)
- 2 inputs
- Command variable
- Setpoint shift Δ
- 2 outputs
- Actual value
- Control of damper actuator
- 1 adjuster for calibrating the sensor measuring range
- 3 setpoint adjusters for maximum and minimum limitation of volume flow and for limiting the setpoint shift Δ to max. ±20%
Part Number: RLP100F924
Manufacturer: Sauter
