Description

VKR032F310-FF | Sauter

Features

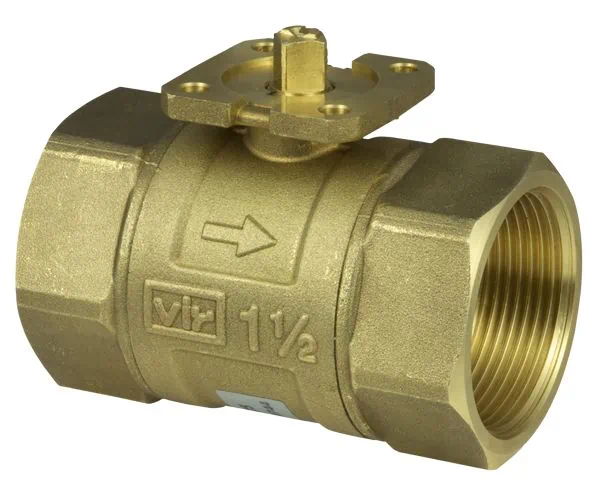

• 2-way regulating ball valve for continuous control of cold and hot water in closed circuits

• In combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S) as a control unit

• Equal-percentage ball valve characteristic; control contour in the ball directly integrated

• Characteristic can be set with SUT rotary actuator (SAUTER Universal Technology) to linear or quadratic

• Spindle with large sliding surface and PTFE glide ring

• Low torque due to collar mounted on O-ring

• Ball valve with female thread as per ISO 7/1 Rp or NPT

• Body made of DZR (dezincification-resistant) cast brass

• Spindle made of DZR brass with PTFE glide ring

• Ball made of DZR brass, chrome-plated and polished surface

• Spindle seal with double O-ring made of EPDM

• Strainer and screw fitting available as accessories

• Water quality as per VDI 2035

Part Number: VKR032F310-FF

Manufacturer: Sauter

Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
