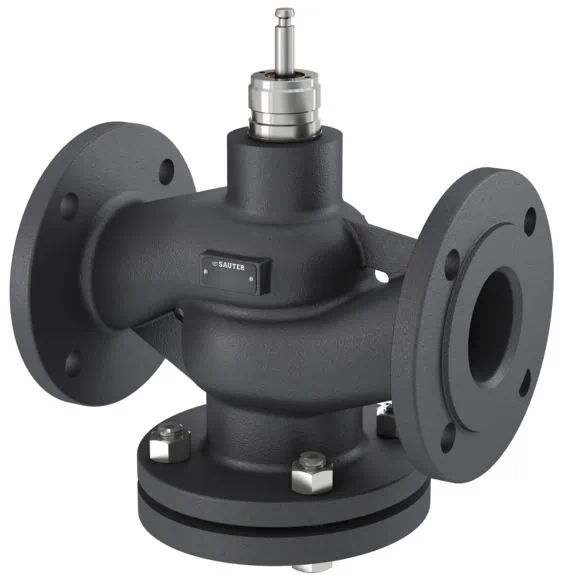

VQE065F300 | Sauter

Description

VQE065F300 | Sauter

Features

• Continuous control of cold and hot water and low-pressure steam up to 115 °C in closed circuits

• Water quality as per VDI 2035

• In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit

• Not suitable for drinking water

• Valve with flange connection as per EN 1092-2, seal form B

• Regulating valve, free of silicone grease, painted black

• Characteristic can be set with SUT (SAUTER Universal Technology) valve actuators to linear, equal-percentage or quadratic

• The valve is closed when the spindle is moved out

• Closing procedure against the pressure

• Valve body and seat made of grey cast iron

• Stainless-steel spindle

• Plug made of stainless steel with metal-to-metal seal

• Stuffing box made of stainless steel with wiper ring and double O-ring seal made of EPDM

Part Number: VQE065F300

Manufacturer: Sauter

Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
