Description

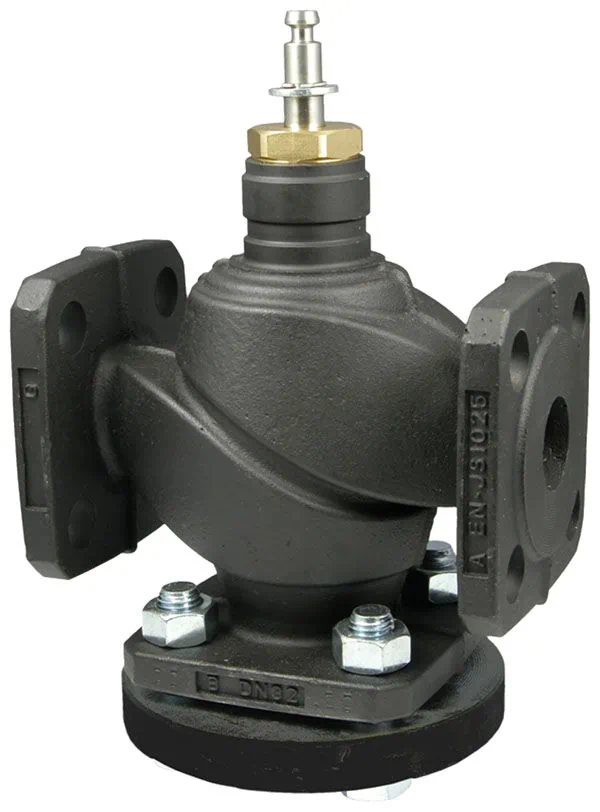

VUG125F304 | Sauter
Features
Continuous control of cold and hot water in closed circuits
Together with pneumatic actuators AVP 242, AVP 243 and AVP 244
Water quality as per VDI 2035
Valve with flange connection as per EN 1092-2, seal form B
Nominal pressure 25 bar, except VUG065F316, nominal pressure 16 bar
Regulating valve, free of silicone grease, painted black
The valve is closed when the spindle is moved out
Closing procedure against the pressure
Valve body made of ductile cast iron; seat and spindle of stainless steel
Plugs of nominal diameter DN 15…50 made of stainless steel with glass-fibre-reinforced PTFE sealing ring
Plugs of nominal diameter DN 65…150 made of stainless steel with metal-to-metal seal
Maintenance-free stuffing box in brass with spring-loaded PTFE washer
Part Number: VUG125F304
Manufacturer: Sauter
Sauter products are subject to a minimum order of £70. If your order includes any Sauter items and their combined value is less than £70 then your order will be rejected when we process it for shipping.
