VUS040F305 | Sauter

Description

VUS040F305 | Sauter

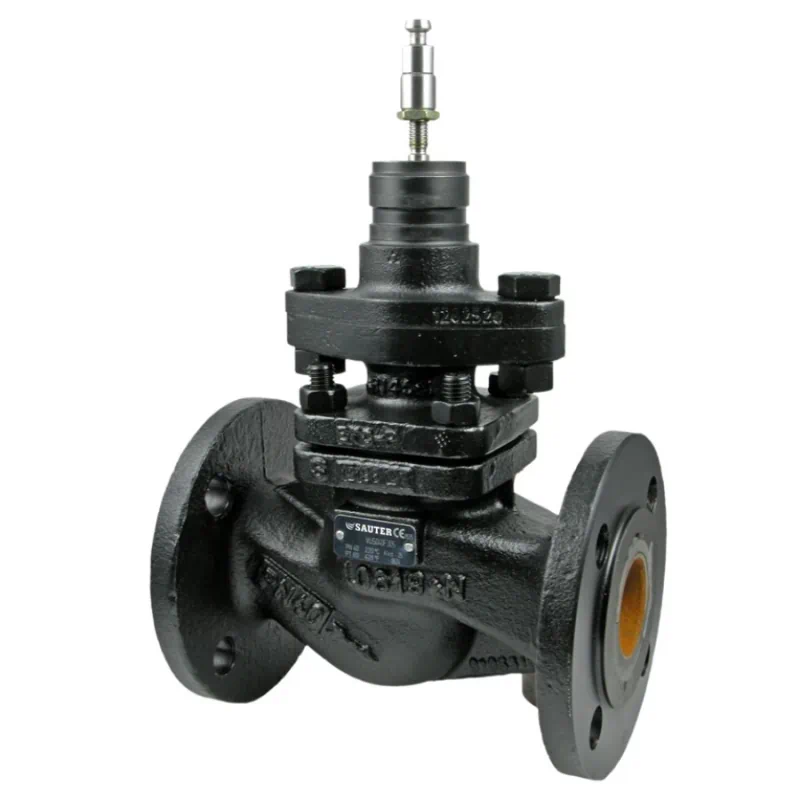

2-way flanged valve, PN 40 (el.)

• Continuous control of cold and hot water in closed circuits, and of steam

• In combination with AVP 242 to 244 actuators as control unit.

• Water quality as per VDI 2035

• Not suitable for drinking water or potentially explosive atmospheres

• Valve with flange connection as per EN 1092-2, seal form B

• Regulating valve, free of silicone grease, with pressure compensation, galvanised and painted black

• The valve is closed when the spindle is moved in

• Valve body made of ductile cast iron

• Valve seat, plug and spindle made of stainless steel

• Closing procedure only against the pressure

• Maintenance-free stuffing box in brass with spring-loaded PTFE-FKM-PTFE washer

Part Number: VUS040F305

Manufacturer: Sauter
